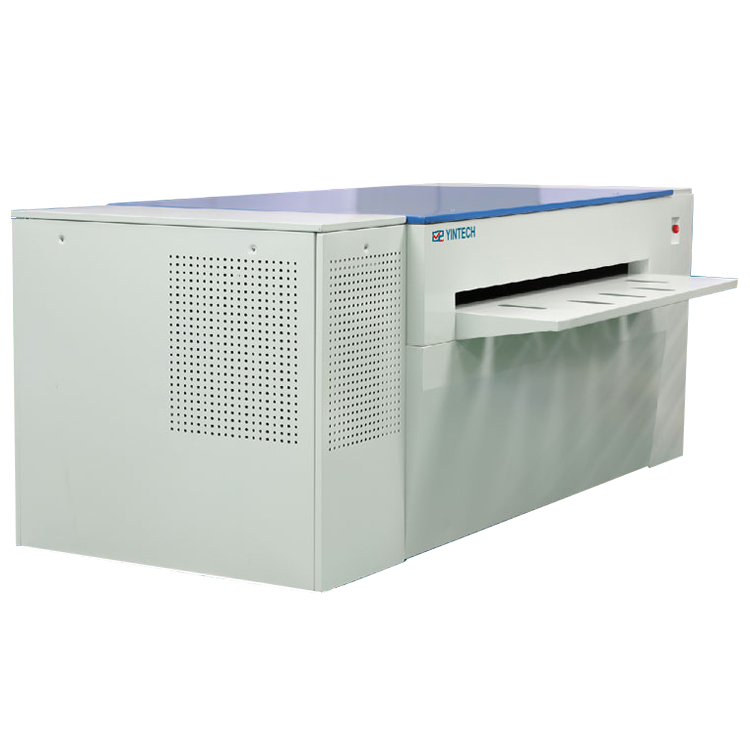

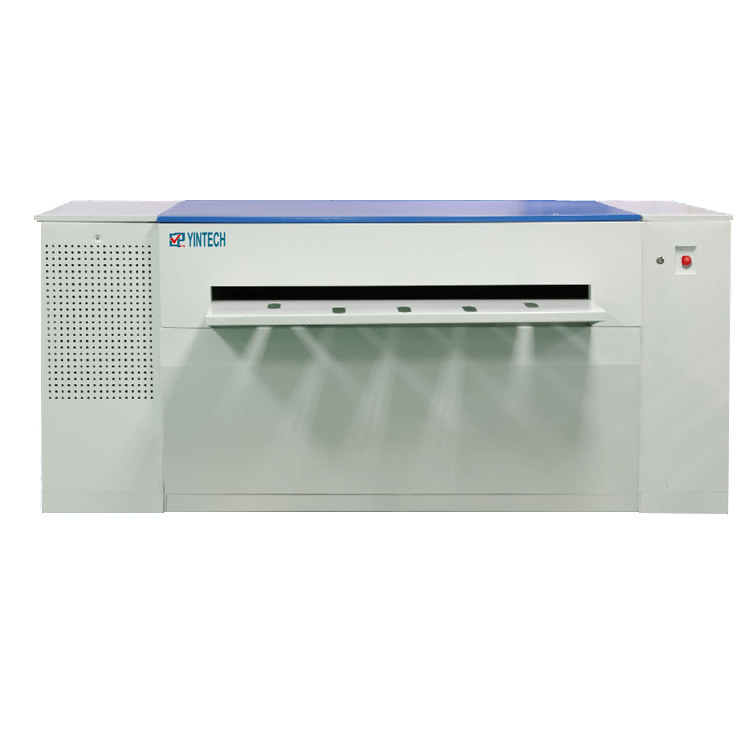

Thermal/CTP Platesetter( Semi-Auto)

thermal ctp machine (semi-automatic)

OnLine

TEL : 4008 323201

thermal ctp machine (Semi-Auto) Semi-Auto make thermal plates for offset printing press.

click to download catalog

技术参数(Technical Specification)

型号

Model

热敏型(Thermal)

UV型(UV)

印霸 8300B

Yinber 8300B

印霸 8500B

Yinber 8500B

印霸 8600B

Yinber 8600B

印霸 8900B

Yinber 8900B

印霸 8100B

Yinber 8100B

印霸 4300B

Yinber 4300B

印霸 4500B

Yinber 4500B

印霸 5300B

Yinber 5300B

印霸 5500B

Yinber 5500B

印霸 9300B

Yinber 9300B

印霸 9500B

Yinber 9500B

印霸 9600B

Yinber 9600B

印霸 9900B

Yinber 9900B

印霸 9100B

Yinber 9100B

激光路数

NO. of Lasers

32

48

64

96

128

32

48

32

48

32

48

64

96

128

制版速度

Throughput

(1130x800mm)

(张/小时,plates/h)

17

22

27

33

43

22

30

22

30

17

22

27

33

43

最大/最小幅面

Max./Min. Format

最大幅面(Max.): 1160mmx 940mm

最小幅面(Min.): 350mmx 400mm

最大幅面(Max.): 925mmx 675mm

最小幅面(Min.): 350mmx 400mm

最大幅面(Max.): 1160mmx 940mm

最小幅面(Min.): 350mmx 400mm

激光光源

Laser Source

830nm

405nm

制版精度

Resolution

2400DPI 其他精度可定制(Resolution can be customized)

上、下版方式

Loading System

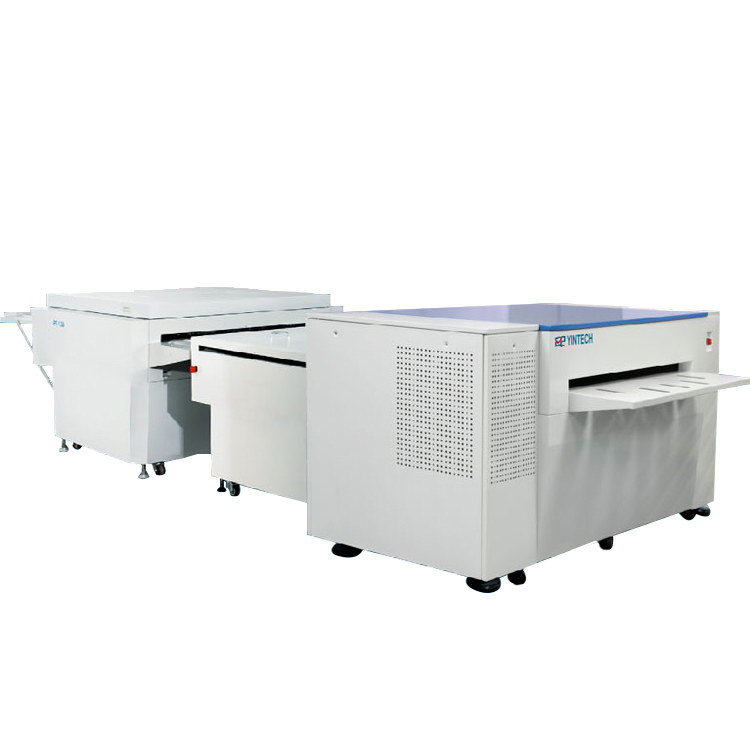

全自动、半自动(可选配自动上版器)

Automatic、Semi-Auto(Optional Auto-loader)

适用版材

Plates Requirement

0.15-0.4mm 各品牌热敏版(Thermal plates, no brand requirement)

0.15-0.4mm 各品牌UV版(UV plates, no brand requirement)

CTP接口

Interface

1-bit Tiff接口以及流程直接驱动,支持CIP3/CIP4

1-bit Tiff interface and direct workflow driver, support CIP3/CIP4

电力要求

Power

AC220V, 50-60Hz 5.5KVA

工作环境要求

Work Environment

温度(Temperature): 20-25˚C 湿度(Humility): 40%-80%

尺寸、重量

Size &Weight

尺寸(size): 2020mmx1000mmx930mm

净重(weight): 1500KGS

尺寸(size): 1900mmx1200mmx1000mm

净重(weight): 1000KGS

尺寸(size): 2020mmx1000mmx930mm

净重(weight): 1500KGS
