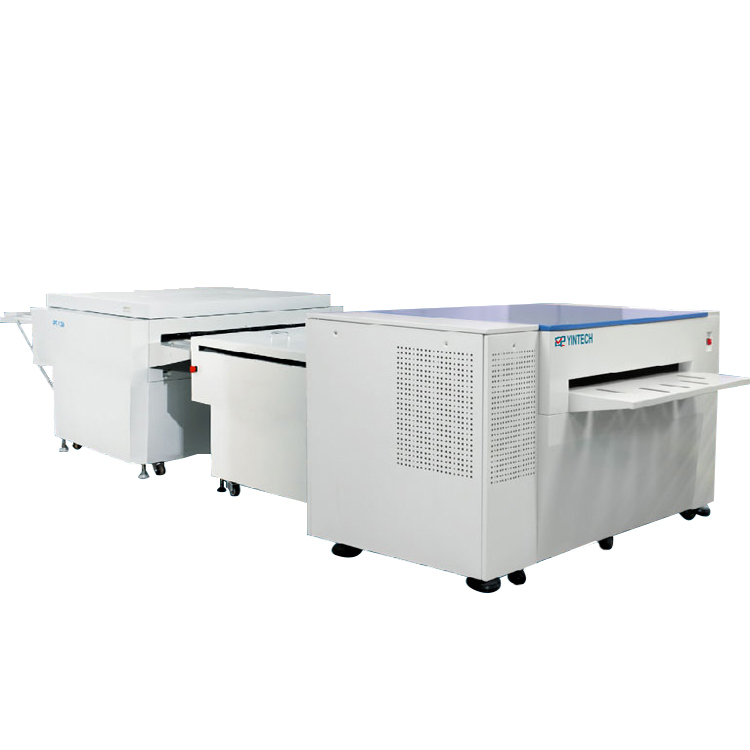

thermal ctp machine making thermal ctp plates,including A1,A2,A0 size ctp gauges.4pages, 8 pages size, 4-up size, 8-up size ctp.very large format ctp.
click to download catalog
Our ctp technology advantages
1. High run length
Yintech CTP ensures very clear and sharp dot and high run length. Day light operation. Failure of any channel of laser diode will not stop the CTP. The CTP can use the remaining channels to work. Therefore, Yintech CTP ensures continuous production and maintenance convenience.
2. Dynamic autofocus
The performance of the platesetter is mostly decided by precise focus control. Plate output quality is derived from the consistent laser spot precision. Yintech CTP utilizes the third generation dynamic focusing technology. The precise distance measuring system can detect the subtle change in distance of 0.1 microns. Driven by the voice coil motor, Yintech CTP can track the changes in the plate surface to adjust the longitudinal position of the lens, to ensure a constant distance between the lens. Yintech dynamic autofocus can also avoid the fine dust from the surface of the photosensitive drum caused by blue spots, blue halo problem. Each spot is exposed in the best focal length to ensure the consistent, clear and sharp dot.
3. Unique dot control technology
Yintech unique graphical calibration technology can perfectly reproduce rectangle, eliminating dimensional deviation caused by different plate thickness. Yintech CTP can make precise compensation for dot gain problem caused by the laser spot size. Yintech CTP can perfect perform 1% to 99% step. One single CTP plate registration accuracy is 5 microns. It can reach 20 microns after calibrating with two different Yintech CTP’s.
4. External drum exposure
Yintech CTP utilizes DDS technology to ensure the phase jittering frequency within 1/32 pixel, to ensure straight and smooth vertical and horizontal line. Yintech drum system balance block can automatically adjust to the new location up to only 5 seconds to adjust, to switch instantaneously for various sizes of plates. In addition, Yintech CTP utilizes the printing press type to curve and clamp the plate, exposes consistent high quality dots.
5. Automatic energy balance
The temperature control system inside the laser constant shielding box can automatically precise temperature to plus or minus 0.1 degrees. And at a precise temperature condition, laser intensity can be automatically calibrated every 8 hours to ensure the consistence of the laser energy.
6. Top quality core components
Yintech CTP is incorporated with the world's top brand laser diode and top grade maglev rails. Precision chemical handled surface of the external drum with swing beat less than 5 microns, never worn. Highly reliability of the plate clamp system with million times fatigue testing and more than 5 million hours record of non-plate-flying.
7. Easy to connect with any workflow
Yintech CTP platesetter is applicable to any CTP workflow with seamless connectivity.
Specification for different models
| CTP Type | Commercial CTP | Very large format CTP | Small CTP |
| Model | 8300/9300(thermal/uv) | 2200/2200U(thermal/uv) | 4300/5300(thermal/uv) |
| Max Plate size | 940x1160mm | 1460x1650mm | 925x670mm |
| Min Plate size | 350x400mm | 508x394mm | 350x400mm |
| Throughput(PPH) | 17/22/27/33/43 optional | 12/15/18/21 optional | 22/30 optional |
| Laser source | 405nm/830nm optional | 405nm/830nm optional | 405nm/830nm optional |
| Resolution | 2400dpi | 2400dpi | 2400dpi |
| Repeatability |
± 5 microns between two consecutive exposures on the same plate left on the drum |
± 5 microns between two consecutive exposures on the same plate left on the drum |
± 5 microns between two consecutive exposures on the same plate left on the drum |
| Accuracy | ± 20 microns between two plates imaged on the same device | ± 20 microns between two plates imaged on the same device | ± 20 microns between two plates imaged on the same device |
| Registration | ± 25 microns between image and plate edge | ± 25 microns between image and plate edge | ± 25 microns between image and plate edge |
|
Loading/unloading system |
semi-automated/ automated optional |
semi-automated |
semi-automated/ automated optional |
| Plates support |
thermal plate/violet plate 0.15-0.40mm thickness, varies brand |
thermal plate/violet plate 0.15-0.40mm thickness, varies brand |
thermal plate/violet plate 0.15-0.40mm thickness, varies brand |
| Workflow connectivity | 1-bit Tiff,is applicable to any CTP workflow with perfect seamless connectivity. | 1-bit Tiff,is applicable to any CTP workflow with perfect seamless connectivity. | 1-bit Tiff,is applicable to any CTP workflow with perfect seamless connectivity. |
| Work Power required |
single-phase AC220-230V 5.5KW |
single-phase AC220-230V 5.5KW |
single-phase AC220-230V 5.5KW |
| Work Environment |
Temperature 20-25°C Humility: 40-80% |
Temperature 20-25°C Humility: 40-80% |
Temperature 20-25°C Humility: 40-80% |
| Size/Weight | 1900x1200x1000mm/1000kg | 2200x1350x1350mm/1500kg | 2880x1310x1310mm/2800kg |
