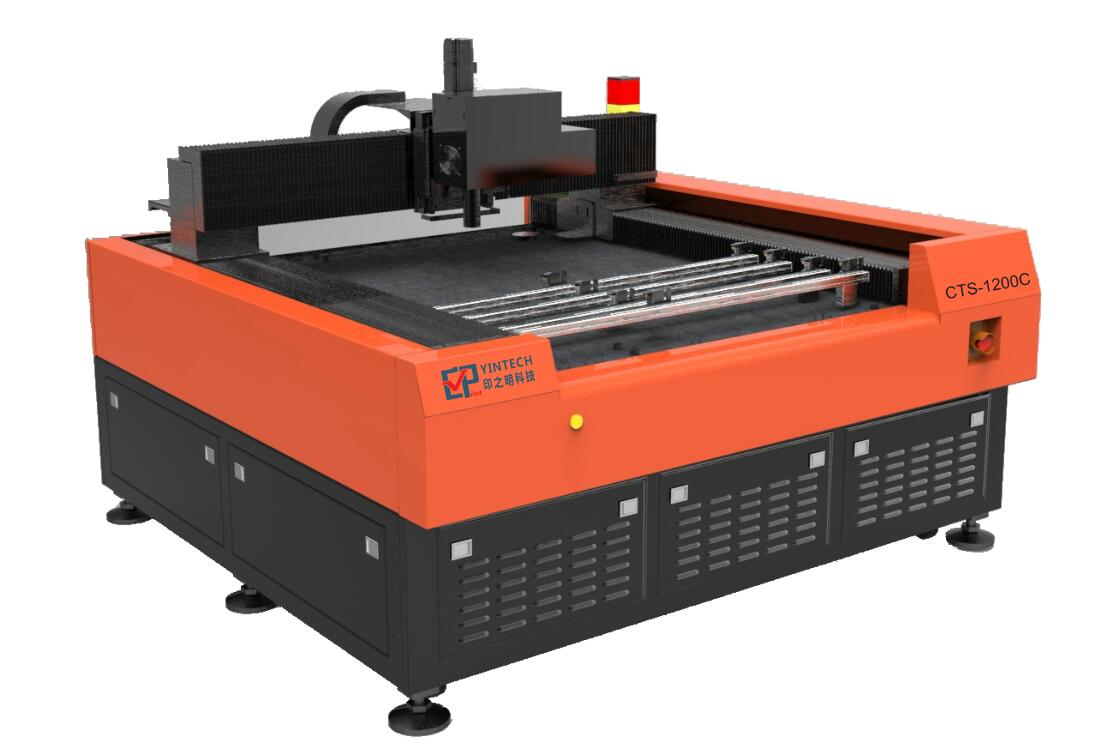

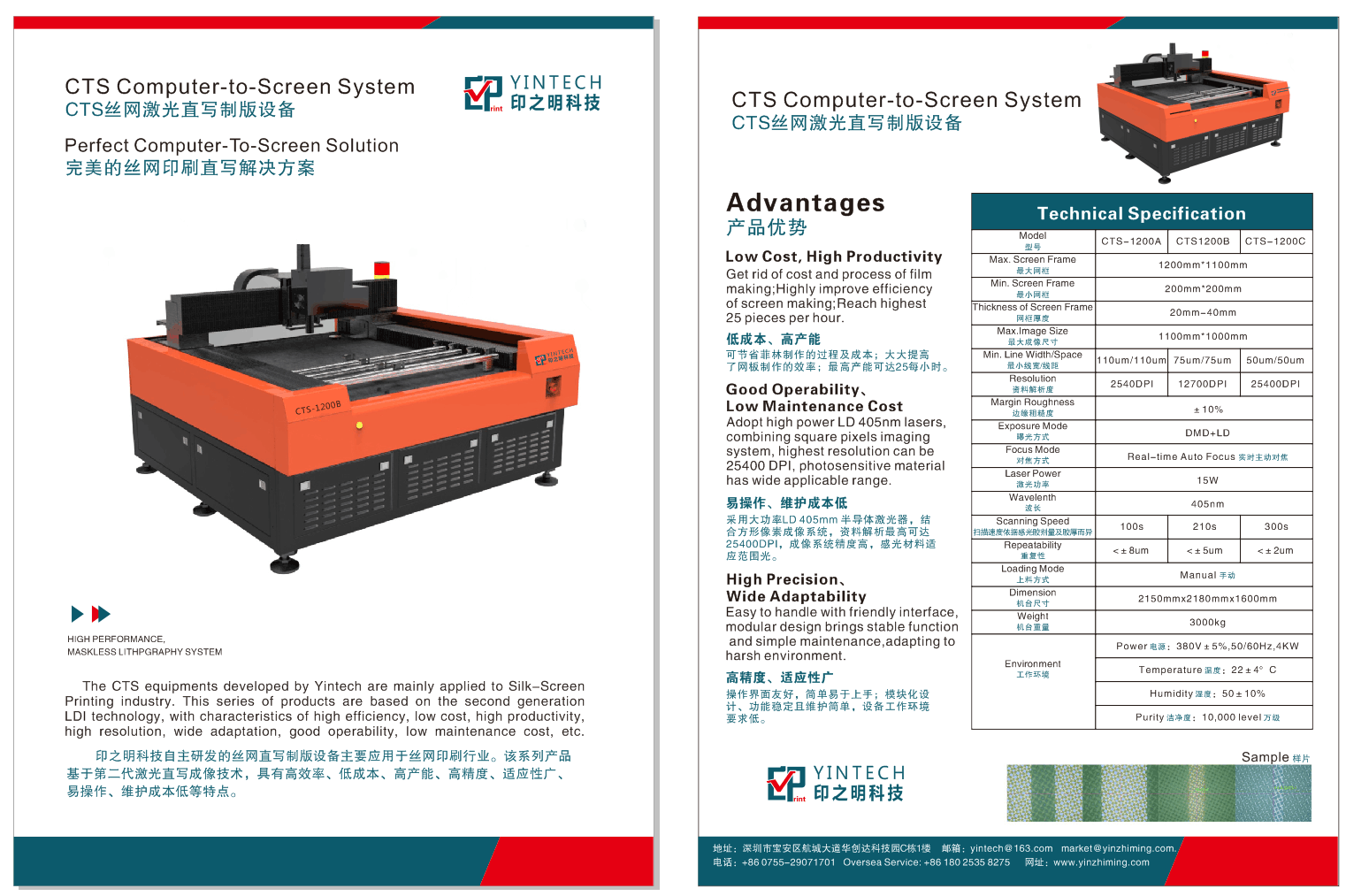

CTS Computer-To-Screen System
Low Cost, High Productivity
Get rid of cost and process of film making;Highly improve efficiency of screen making;Reach highest 25 pieces per hour.
Good Operability、Low Maintenance Cost
Adopt high power LD 405nm lasers,combining square pixels imaging system, highest resolution can be 25400 DPI, photosensitive material has wide applicable range.
High Precision、Wide Adaptability
Easy to handle with friendly interface,modular design brings stable function and simple maintenance,adapting to harsh environment.
| Model NO. | CTS-1200U/CTS-1200H |
| Max. Screen Frame | 1200×1100mm |
| Min. Screen Frame | 200×200mm |
| Thickness of Screen Frame | 20~40mm |
| Max. Image Size | 1100×1000mm |
| Min. Line Width/Space | 75/75 microns 50/50microns |
| Resolution | 12700DPI/25400DPI |
| Margin Roughness | ±10% |
| Exposure Mode | DMD+LD |
| Focus Mode | Real-Time Auto Focus |
| Laser Power | 15W |
| Wavelength | 405nm |
| Scanning Speed | 210s/300s |
| Repeatability | <±2um |
| Loading Mode | Manual |
| Dimension | 2150×2180×1600mm |
| Weight | 3000KG |
| Environment | Power: 380V±5%,50/60HZ,4KW |
| Environment | Temperature: 22±4 ºC |
| Environment | Humidity: 50º±10% |
| Environment | Purity: 10,000 Level |
